STAR LITE BASIC WALL MOUNT

DESIGNED AND MADE IN SLOVENIA, EUROPE.

These structures are designed to suit every type of gym, from home setups to large professional sports facilities. The modular system allows you to expand the WALL MOUNT to your liking, offering virtually unlimited customization options, such as adding more squat, bench press, or pull-up stations. As your gym grows, your WALL MOUNT grows with it.

All units are constructed from 60 × 60 × 3 mm steel profiles and are connected with two different pull-up bar sizes—1040 mm and 1740 mm—to provide both narrow and wide grip options. With add-ons from the LITE series, you can fully customize and personalize your wall mount to meet your specific needs.

J-Cups for each squat/bench press station are included with the unit.

DIMENSIONS:

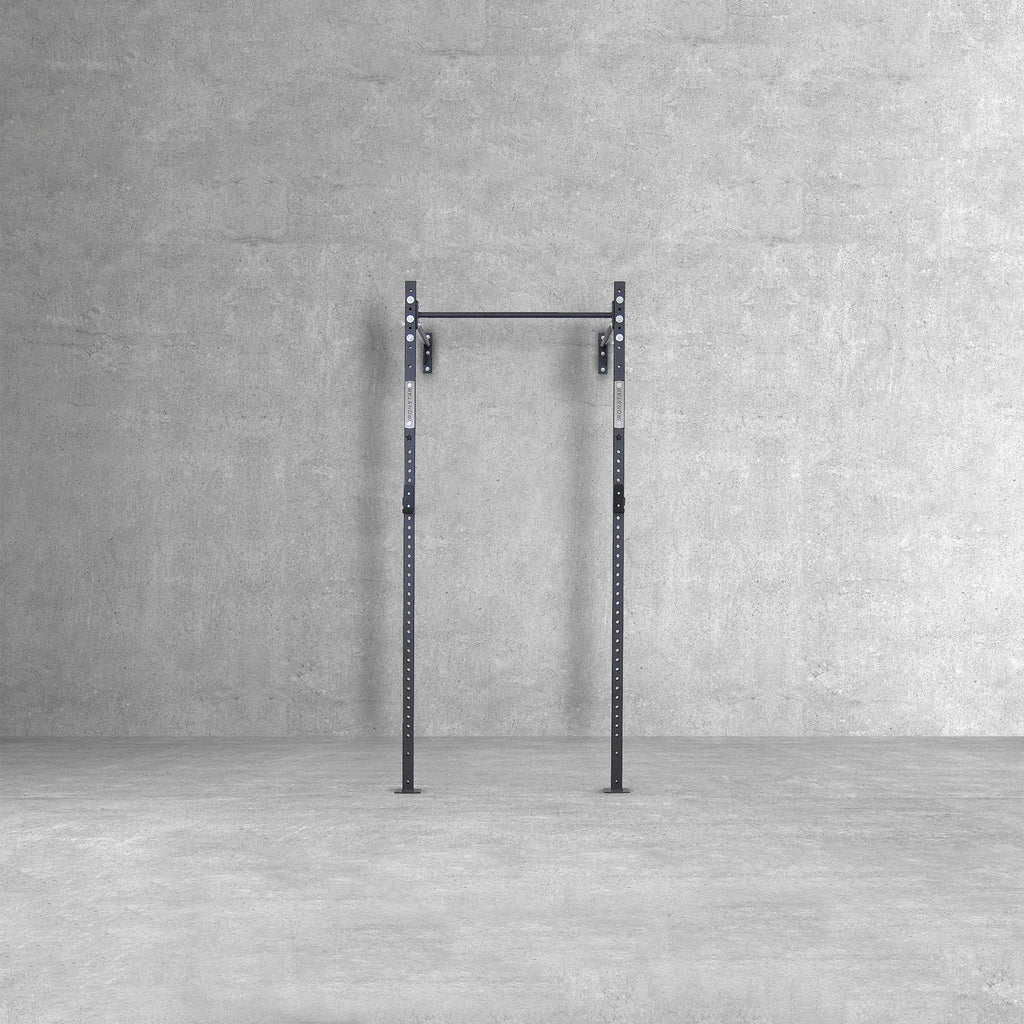

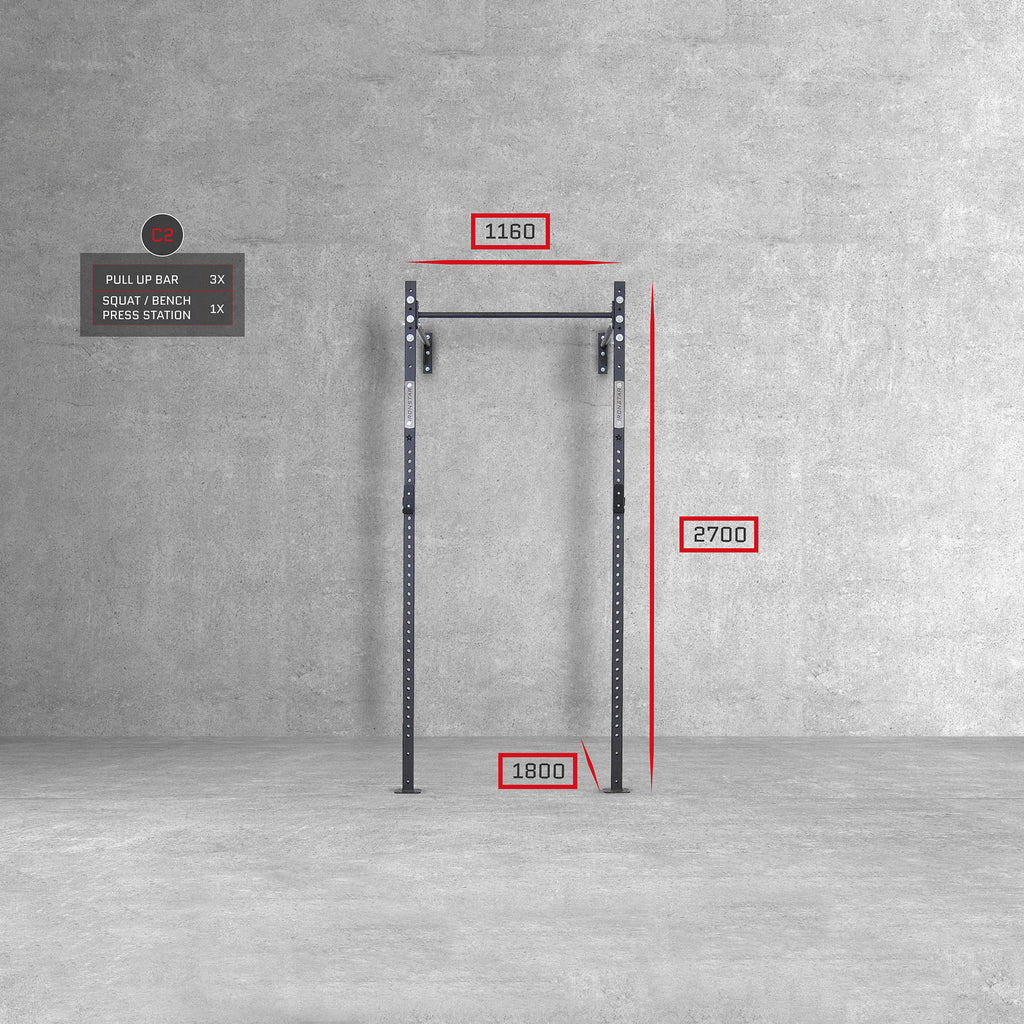

• C2: 2700 x 1160 x 1800 mm (height x width x depth)
  • 1 squat/bench press station, 3 pull-up stations, 1 pair of J-Cups

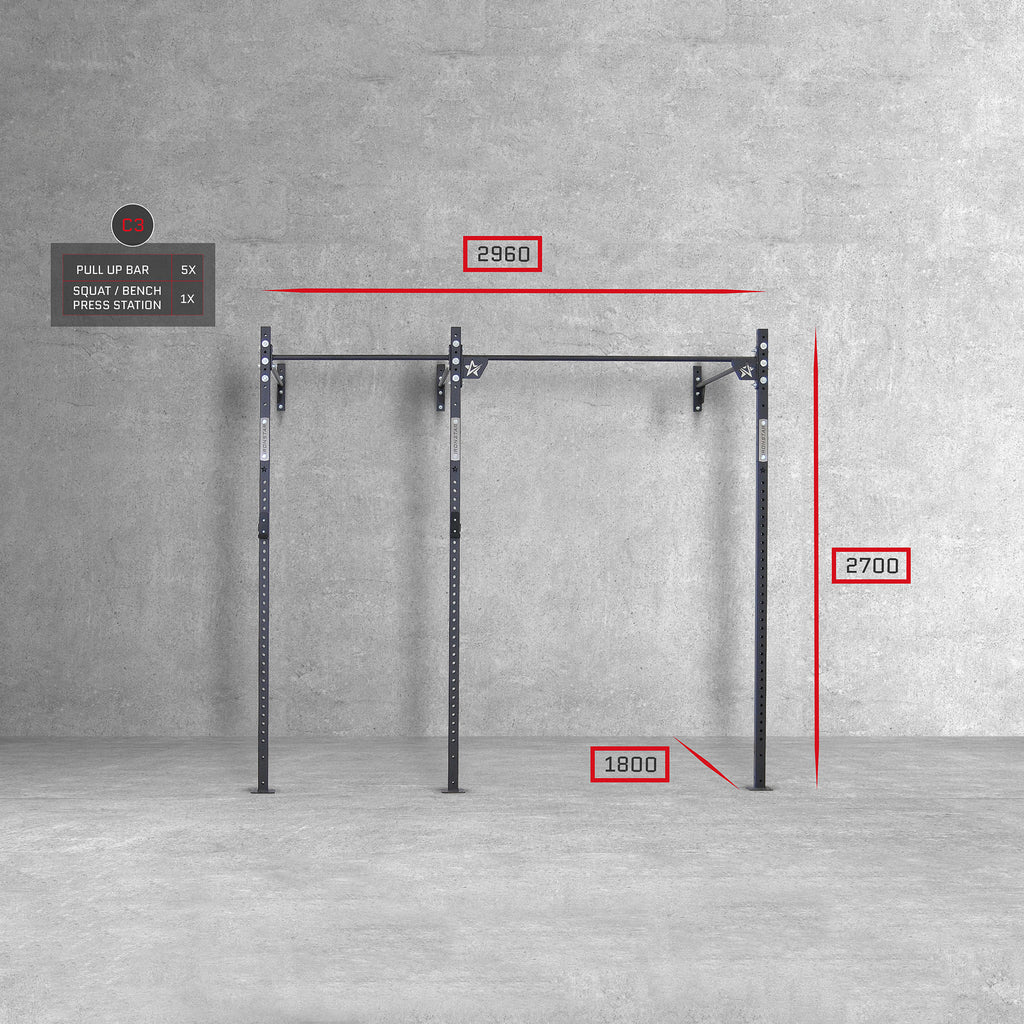

• C3: 2700 x 2960 x 1800 mm (height x width x depth)
  • 1 squat/bench press station, 5 pull-up stations, 1 pair of J-Cups

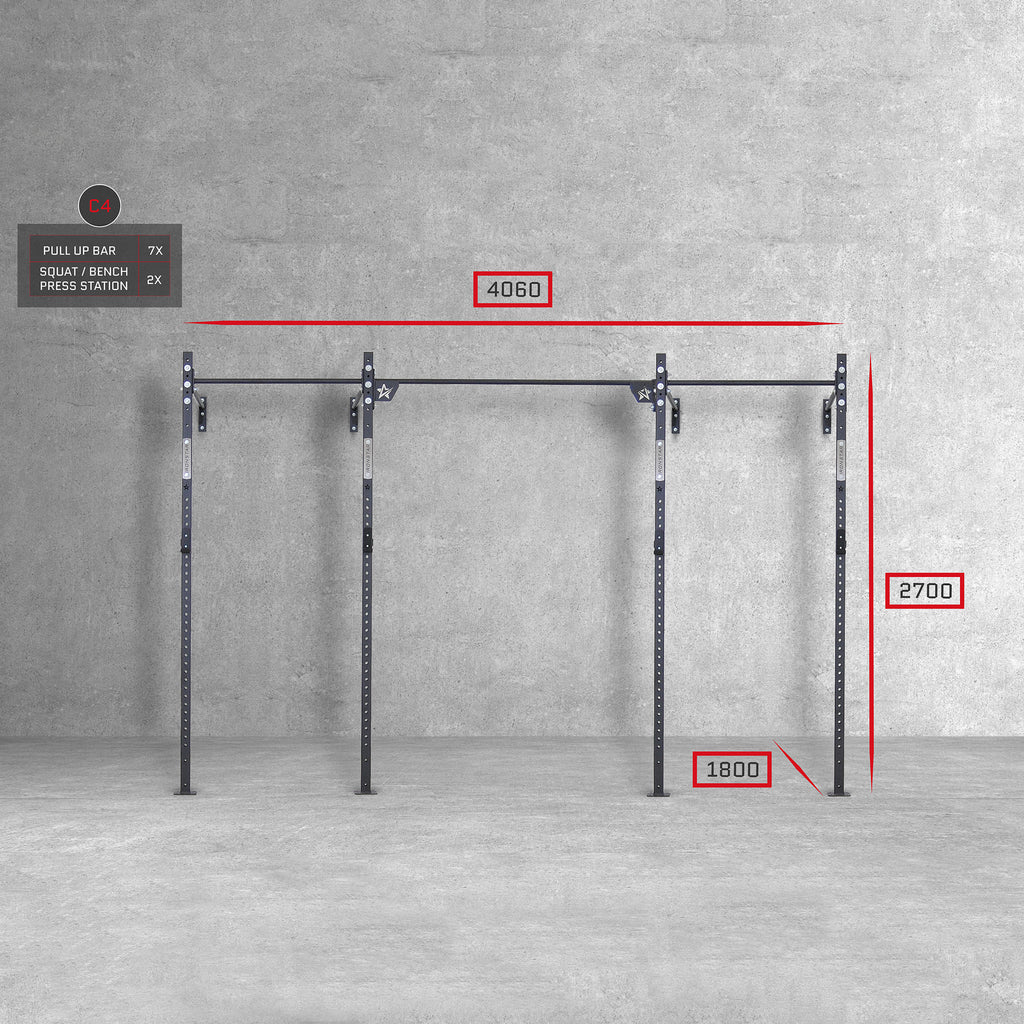

• C4: 2700 x 4060 x 1800 mm (height x width x depth)
  • 2 squat/bench press stations, 7 pull-up stations, 2 pairs of J-Cups

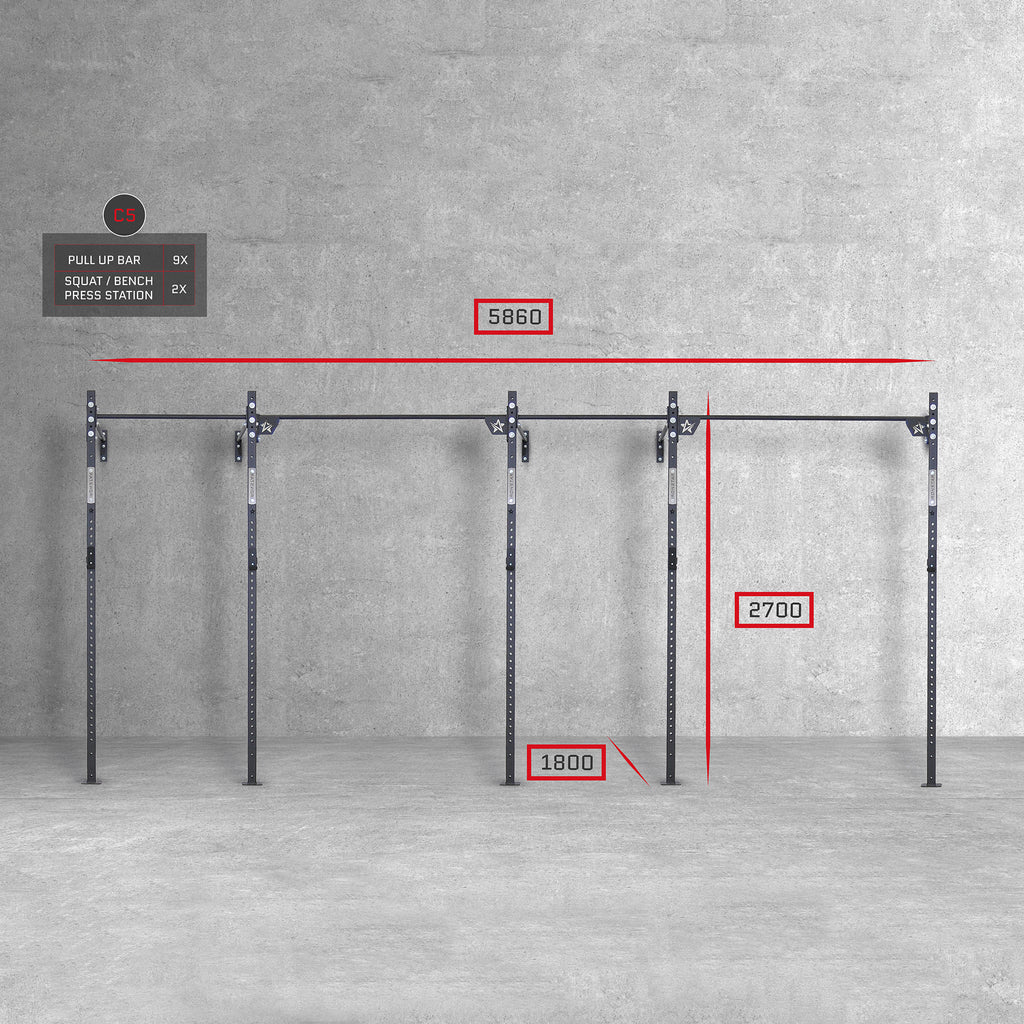

• C5: 2700 x 5860 x 1800 mm (height x width x depth)
  • 2 squat/bench press stations, 9 pull-up stations, 2 pairs of J-Cups

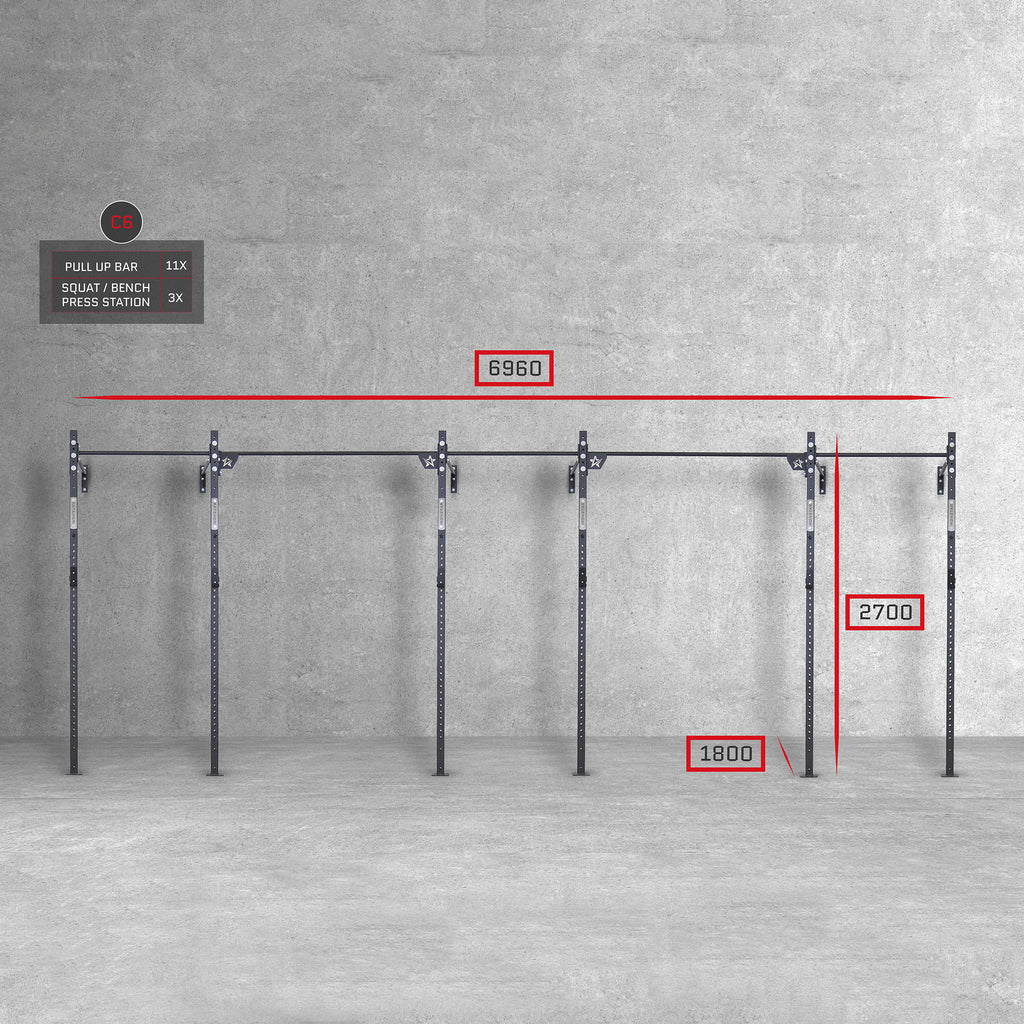

• C6: 2700 x 6960 x 1800 mm (height x width x depth)
  • 3 squat/bench press stations, 11 pull-up stations, 3 pairs of J-Cups

SPECIFICATIONS:

• Maximum axial height of the pull up bar is 2625 mm, minimum axial height is 1925 mm
• Axial distance between front holes is 50 mm
• Steel profiles: 60 x 60 x 3 mm (LITE series)
• Color: black, powder coated
• Compatible with add-ons from the LITE series

Assembly material and assembly instructions are included with every wall rack. Add-ons and accessories shown in photos are not included in the price of the basic STAR LITE BASIC WALL MOUNT.

IMPORTANT: Please note that the STAR LITE BASIC WALL MOUNTS have side holes only at the top and bottom of the columns. Therefore, they are not compatible with the Adjustable Pull-Up Bar or the Front-Mounted Dip Station.

*The structure must be secured to both the wall and the floor. The unit does not include screws for floor mounting; however, we recommend fixing the structure to the floor for safety reasons. If your space has underfloor heating and floor mounting is not possible, please contact us at info@ironstar-fit.com and our team will help you find a suitable solution.

Customizations Available: If you are interested in STAR LITE BASIC WALL MOUNT structures with a depth of 1100 mm (narrow version), or if you would like to personalize the structure to your needs, please contact us at info@ironstar-fit.com and our team will find the best possible solution for you.
