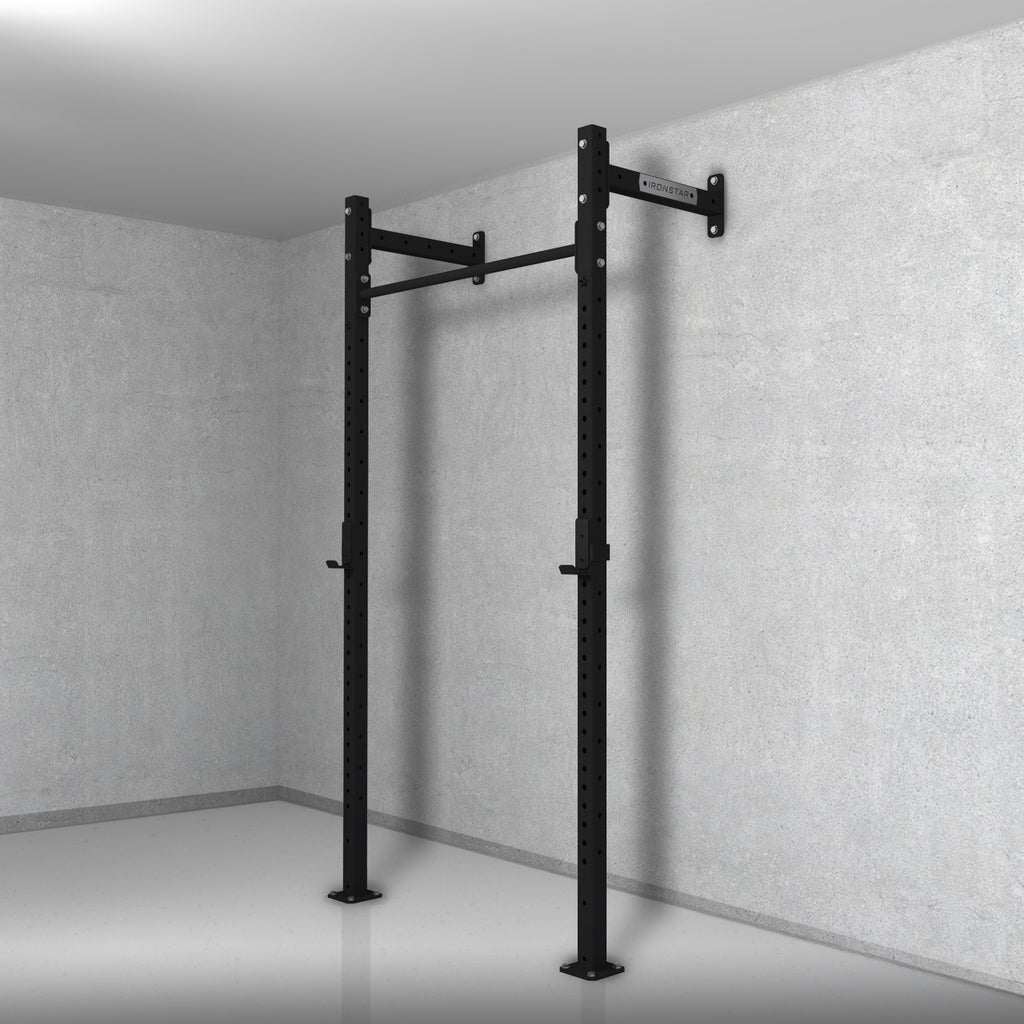

STAR LITE WALL MOUNT RACK

DESIGNED AND MADE IN SLOVENIA, EUROPE.

This structure is especially suitable for small spaces. Thanks to its height and depth, it can be easily installed in compact rooms, allowing you to create your own home gym. The design includes two wall-mounting elements, two columns, and one fixed pull-up bar. The unit also comes with 1 pair of J-Cups.

Compatible with add-ons from the LITE series.

SPECIFICATIONS:

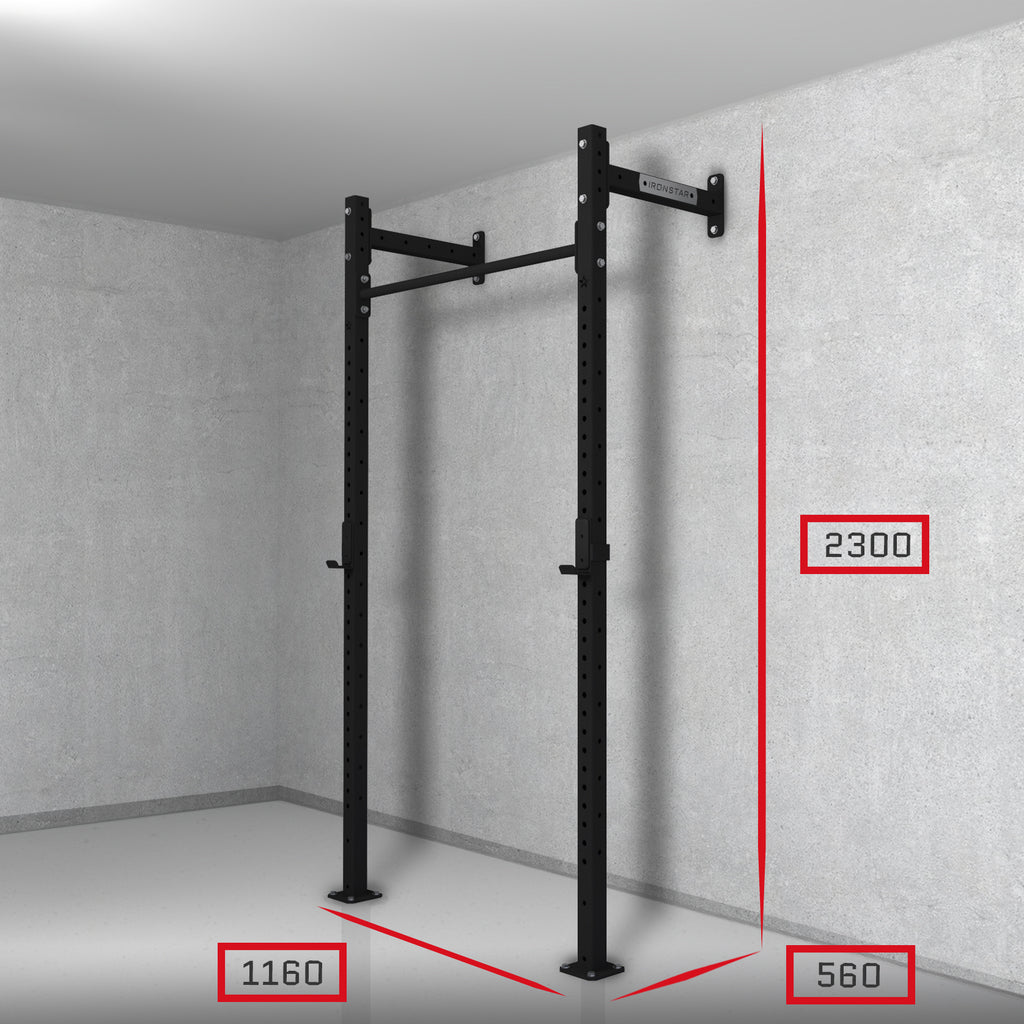

• Height: 2300 mm
  • Maximum axial height of the front face pull-up bar is 2225 mm
  • Side holes on the columns (spaced 10 cm apart) allow the pull-up bar and connection profile to be mounted at different heights.

  • Axial distance between front holes is 50 mm
• Width: 1160 mm
• Depth: 560 mm
• Steel profiles: 60 x 60 x 3 mm (LITE series)
• Color: black, powder coated
• Max load capacity: 350 KG
• Weight: 37 KG
• Compatible with add-ons from the LITE series

The BASIC model of the wall rack includes:

• 2x columns,
• 2x connection profile with IRONSTAR nameplate,
• 1x fixed pull up bar (1040 mm),
• 1x pair of J-Cups (plastic inserts included),
• assembly material & instructions.

Assembly material and assembly instructions are included with every wall rack. Add-ons and accessories shown in photos are not included in the price of the basic model STAR LITE WALL MOUNT RACK.

*The structure must be secured to both the wall and the floor. The unit does not include screws for floor mounting; however, we recommend fixing the structure to the floor for safety reasons. If your space has underfloor heating and floor mounting is not possible, please contact us at info@ironstar-fit.com and our team will help you find a suitable solution.

Customizations Available: Want to personalize your rack—whether it’s colors or other adjustments? Reach out to us at info@ironstar-fit.com, and our team will work with you to create the perfect setup.
