STAR LITE BASIC RIG

The Star Lite Basic Rig is built to enhance any training space. Constructed from 60 × 60 × 3 mm steel profiles and finished with a standard matte black powder coating, the structure combines durability with a clean, premium appearance. Sections are connected by pull-up bars available in two lengths — 1040 mm and 1740 mm — defining the depth of each training station as Narrow or Wide.

Thanks to the full range of LITE series add-ons, the rig can be fully customized to suit your training style and space requirements.

The modular design allows you to expand as your needs evolve — add more stations, extend the structure, or create additional squat, bench press, and pull-up configurations. When your gym grows, so does your rig.

Each squat and bench press station includes a pair of J-Cups, so your rig is ready from day one.

Dimensions:

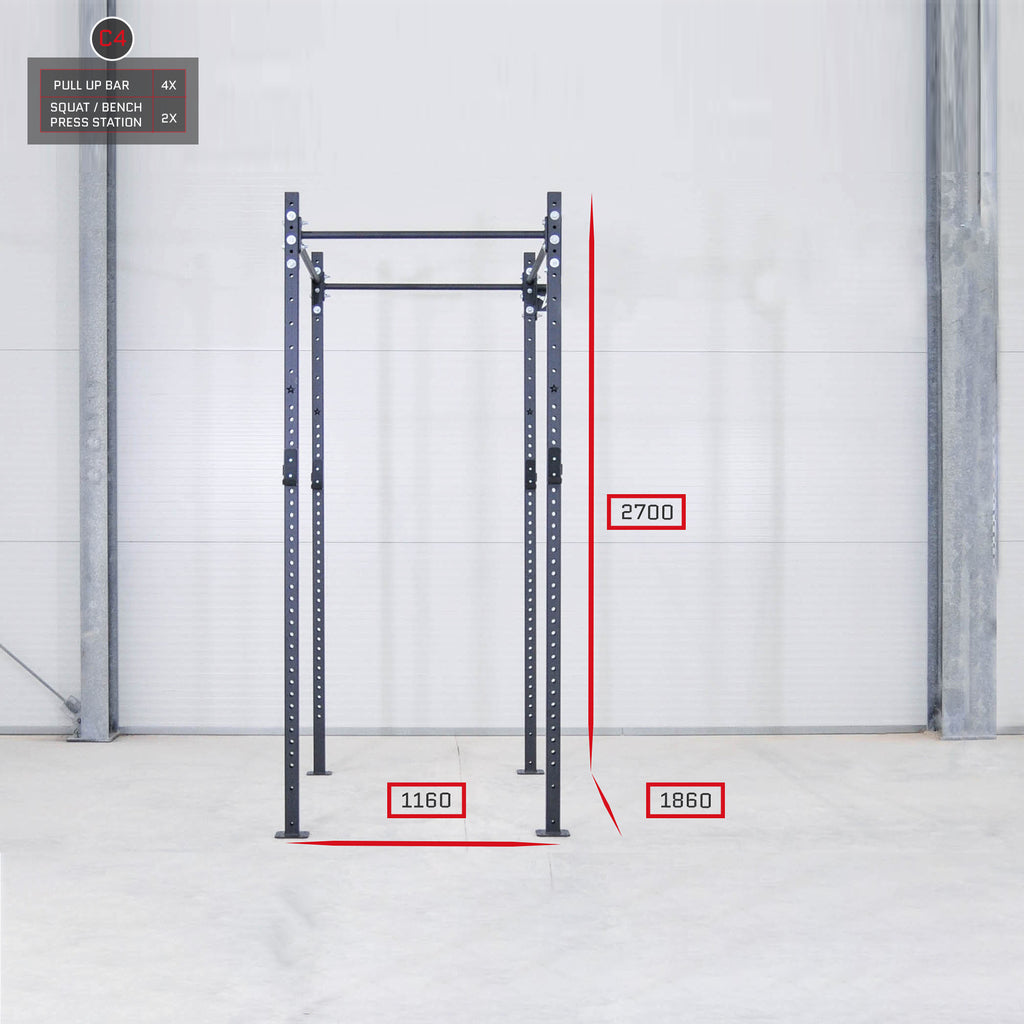

• C4: 2700 × 1160 × 1860 mm (H × W × D)
  • 2 squat/bench press stations, 4 pull-up stations, 2 pairs of J-Cups

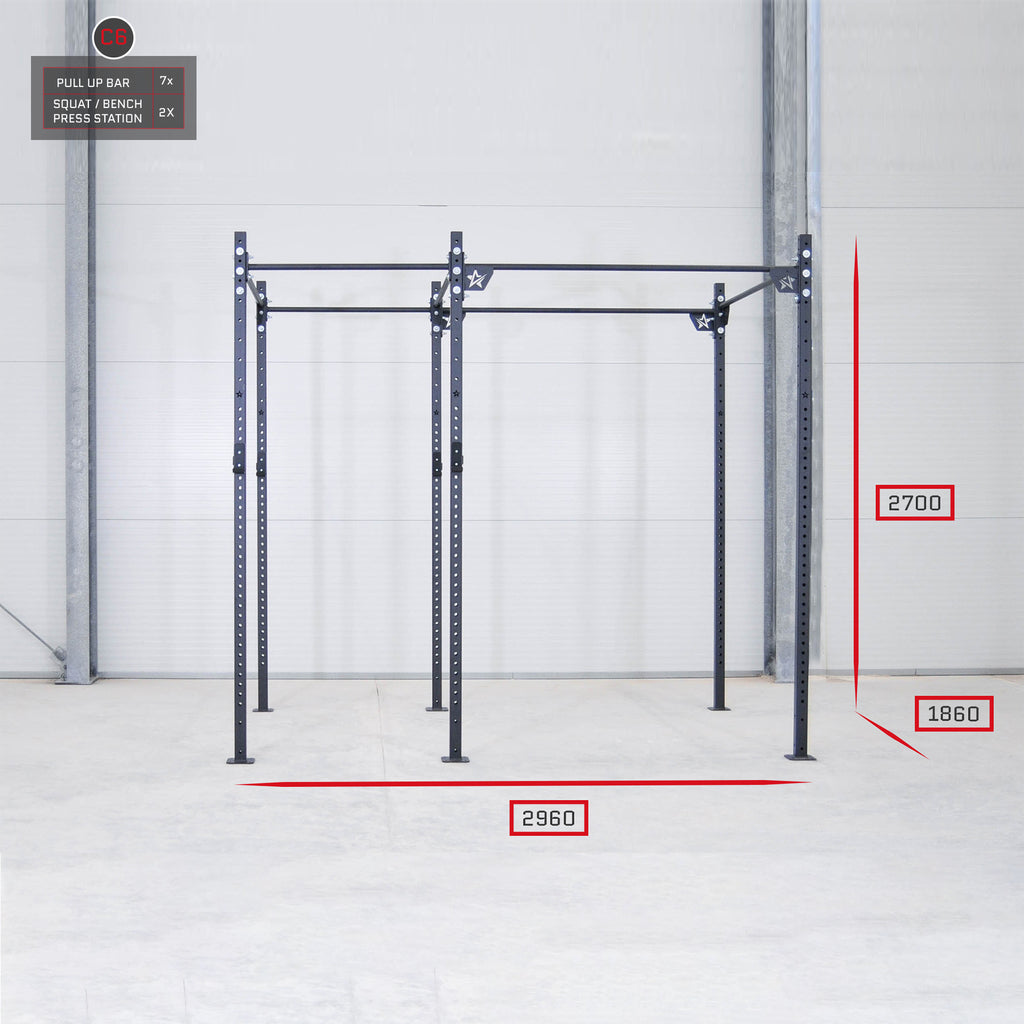

• C6: 2700 × 2960 × 1860 mm (H × W × D)
  • 2 squat/bench press stations, 7 pull-up stations, 2 pairs of J-Cups

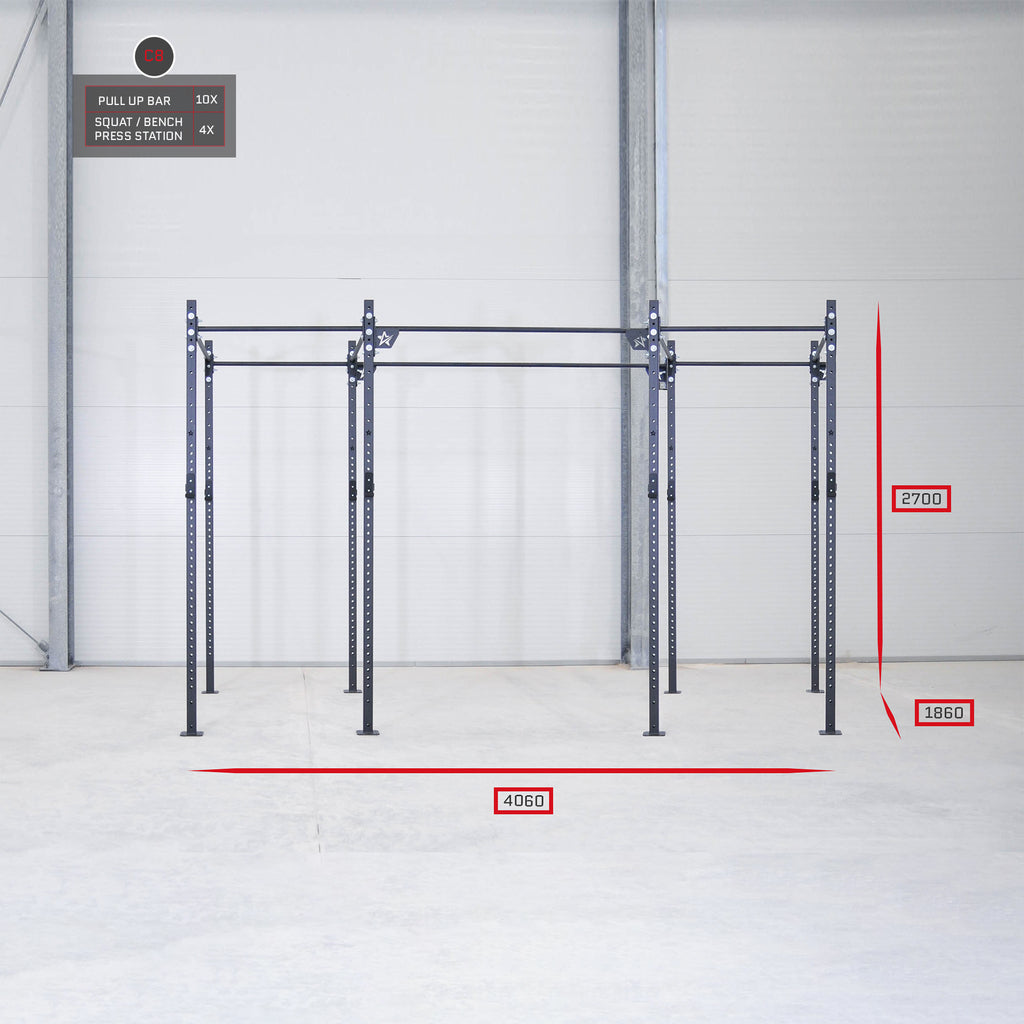

• C8: 2700 × 4060 × 1860 mm (H × W × D)
  • 4 squat/bench press stations, 10 pull-up stations, 4 pairs of J-Cups

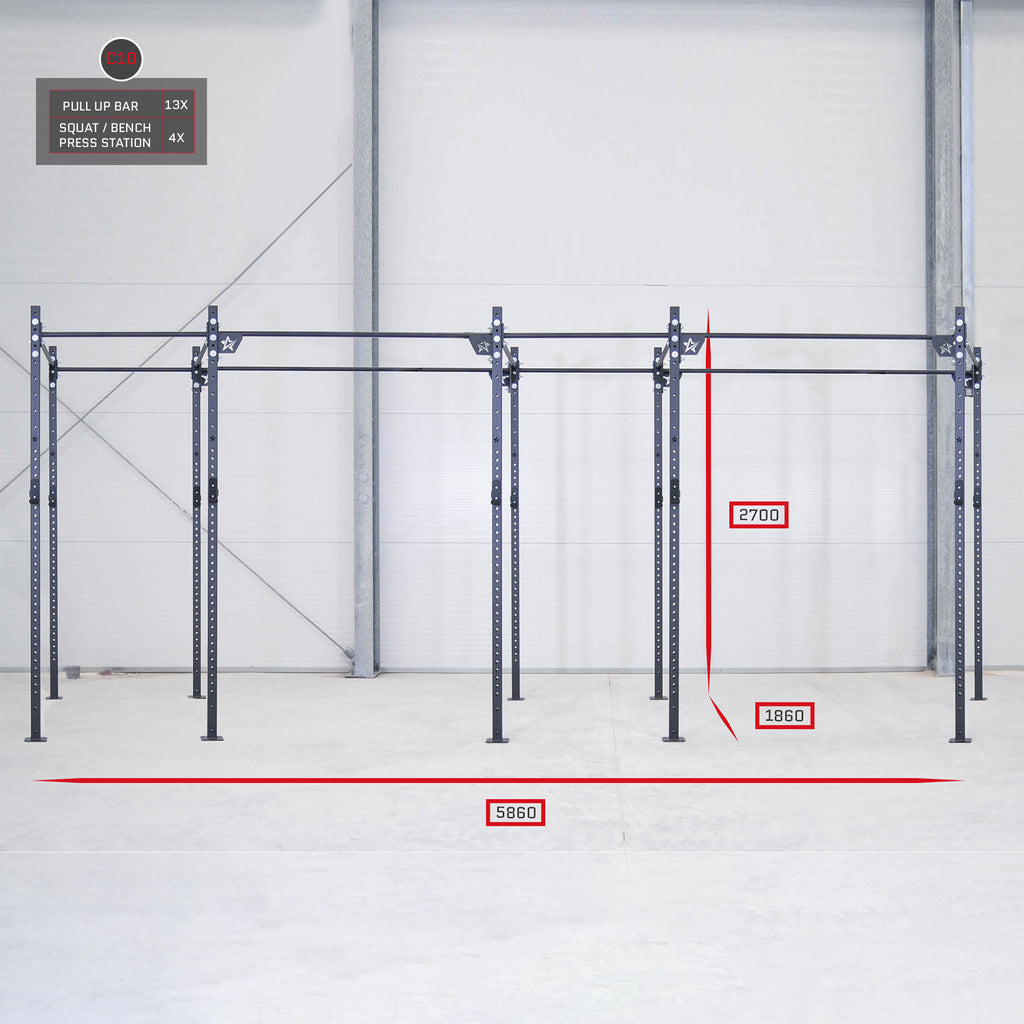

• C10: 2700 × 5860 × 1860 mm (H × W × D)
  • 4 squat/bench press stations, 13 pull-up stations, 4 pairs of J-Cups

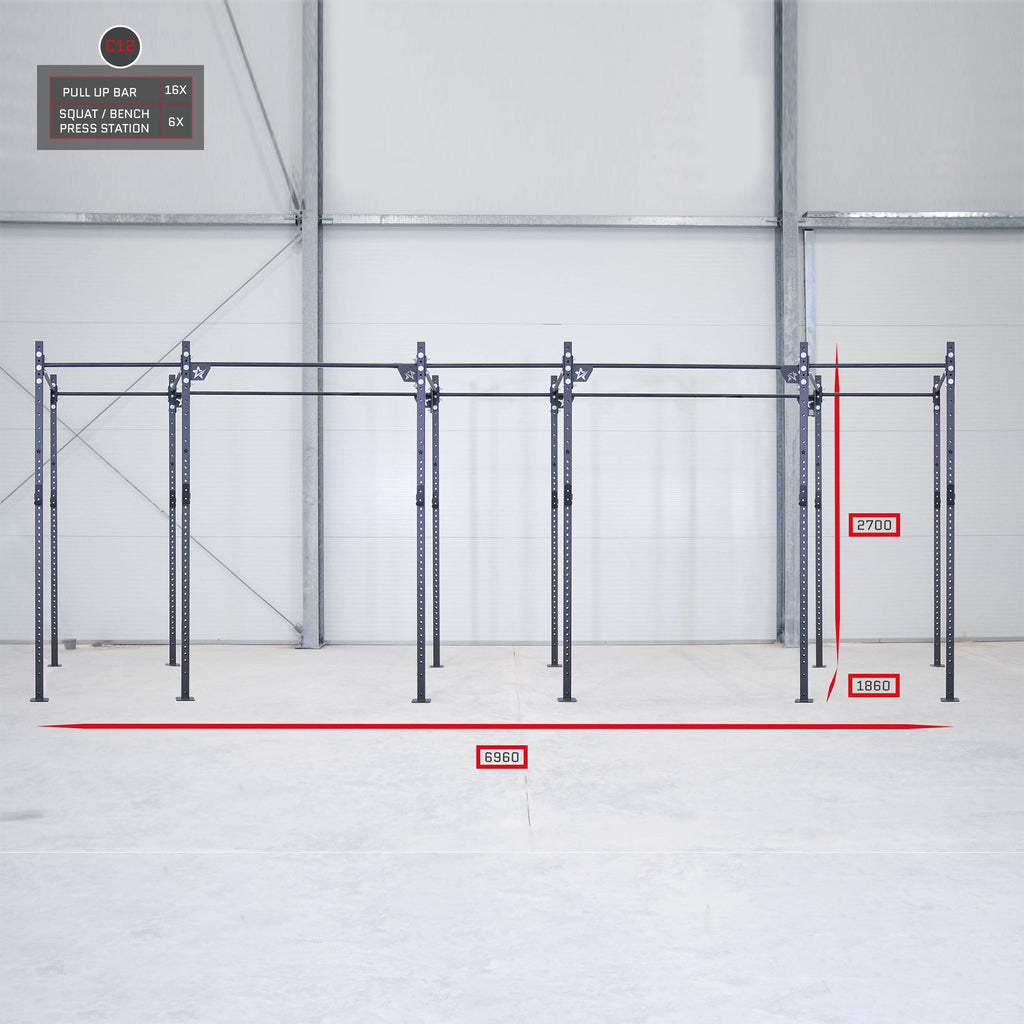

• C12: 2700 × 6960 × 1860 mm (H × W × D)
  • 6 squat/bench press stations, 16 pull-up stations, 6 pairs of J-Cups

Specifications:

• Maximum axial height of pull-up bar: 2625 mm, minimum: 1925 mm
• Axial distance between front holes: 50 mm
• Steel profiles: 60 × 60 × 3 mm
• Color: black, powder-coated
• Compatible with LITE series add-ons

⚠️ Add-ons and accessories shown in photos are not included in the price of the base model.

⚠️ Important: The Star Lite Basic Rig features side mounting holes only at the top and bottom of the uprights. The Adjustable Pull-Up Bar and Front-Mounted Dip Station cannot be installed on these units.

⚠️ Warning: The structure must be secured to the floor. Floor mounting screws are not included. If your space has underfloor heating and floor mounting is not possible, contact us at info@ironstar-fit.com and our team will help you find a suitable solution.

⚠️ Customizations and adjustments available. If you wish to personalize the structure or order a narrow field (1160 mm depth) version, contact us at info@ironstar-fit.com and our team will find the best solution for you.
