STAR BEAST BASIC WALL MOUNT

DESIGNED AND MADE IN SLOVENIA, EUROPE.

These structures are made to suit every possible gym: from home use to the biggest professional sport facilities. Modular system allows you to expand the WALL MOUNT to your liking and add infinite customisation options, like extending the structure and gaining numerous squat/bench press/pull up stations. When your gym expands - so does your WALL MOUNT. All units are made from 80 x 80 x 3 mm steel profiles, which are connected with 2 different sizes of pull up bars - 1040 mm and 1740 mm - to provide narrow and wide field for use. With the add-ons from the BEAST series, you can completely customize and personalize the wall mount to fit your needs.

J-Cups for each squat / bench press station are included in the unit.

DIMENSIONS:

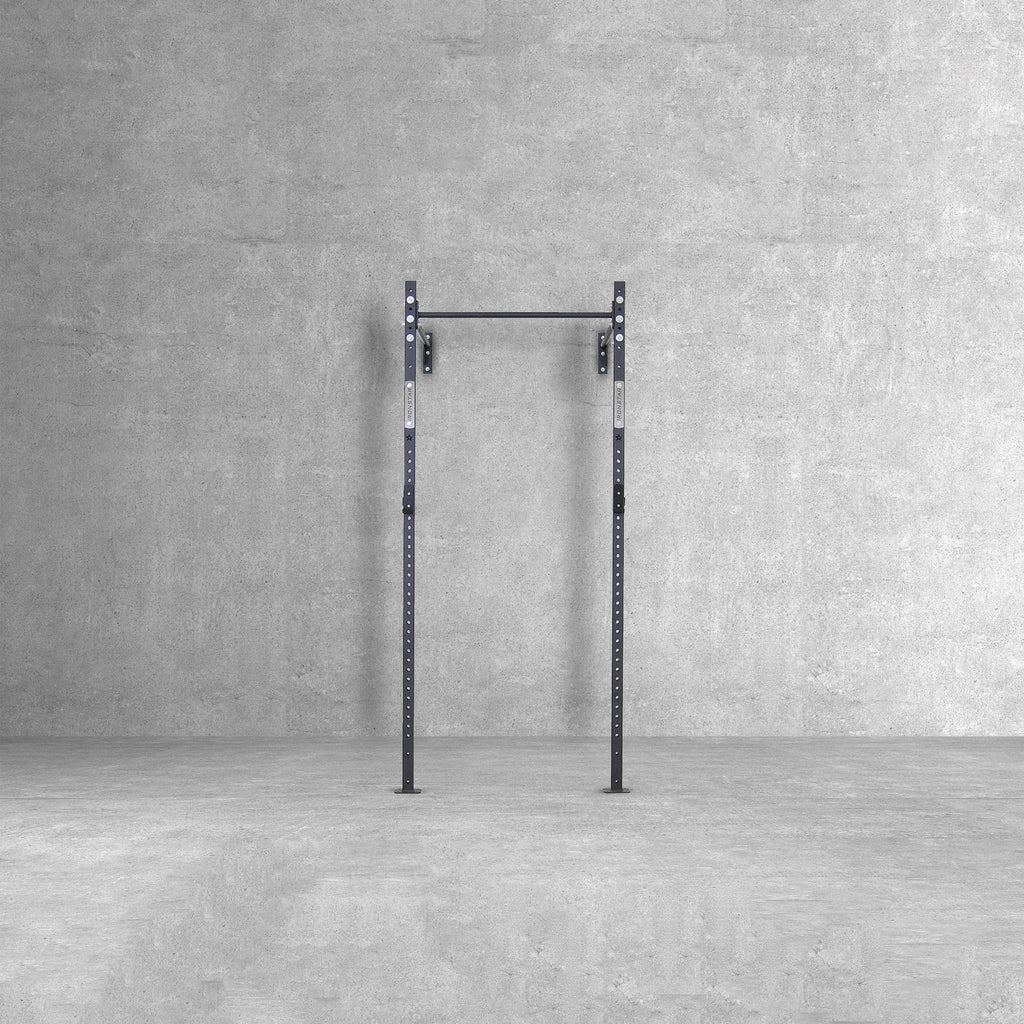

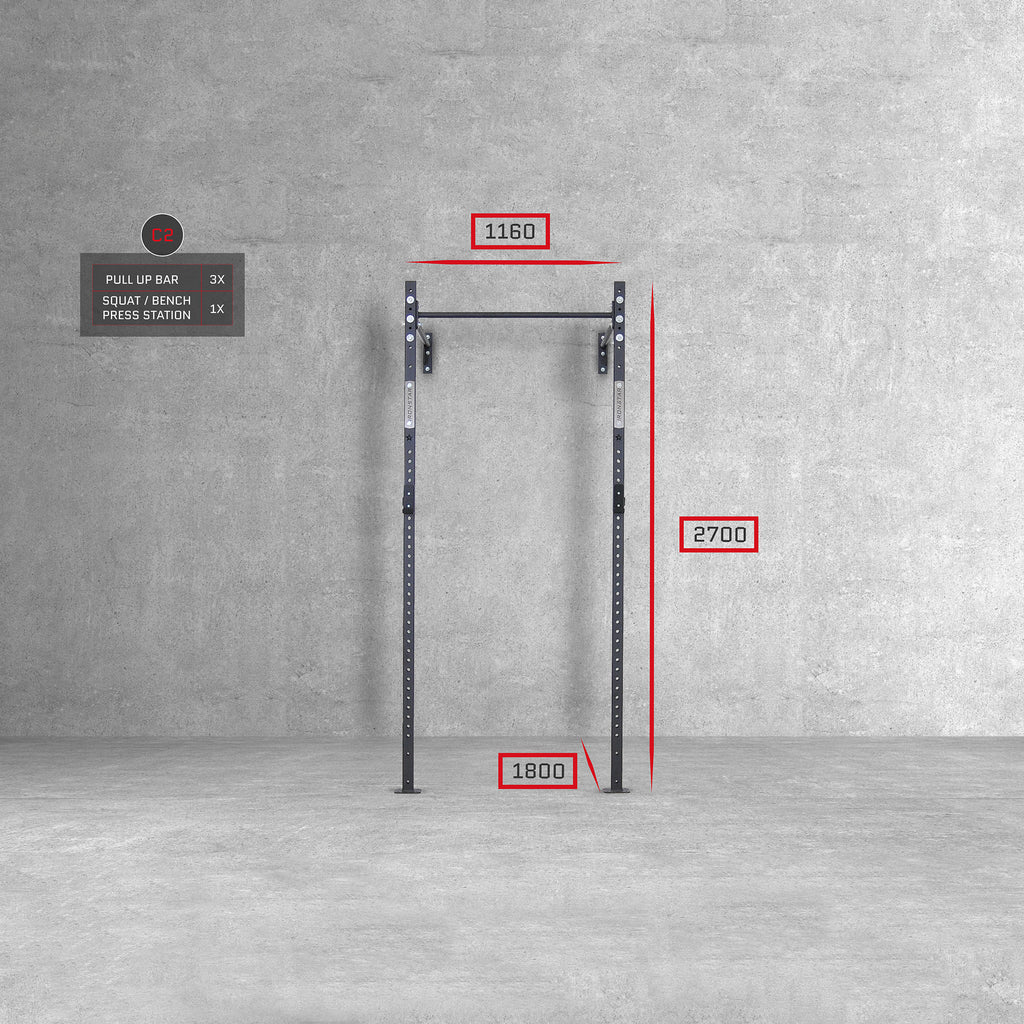

• C2: 2700 x 1200 x 1820 mm (height x width x depth)
  • 1 squat/bench press station, 3 pull up stations, 1 pair of J-Cups

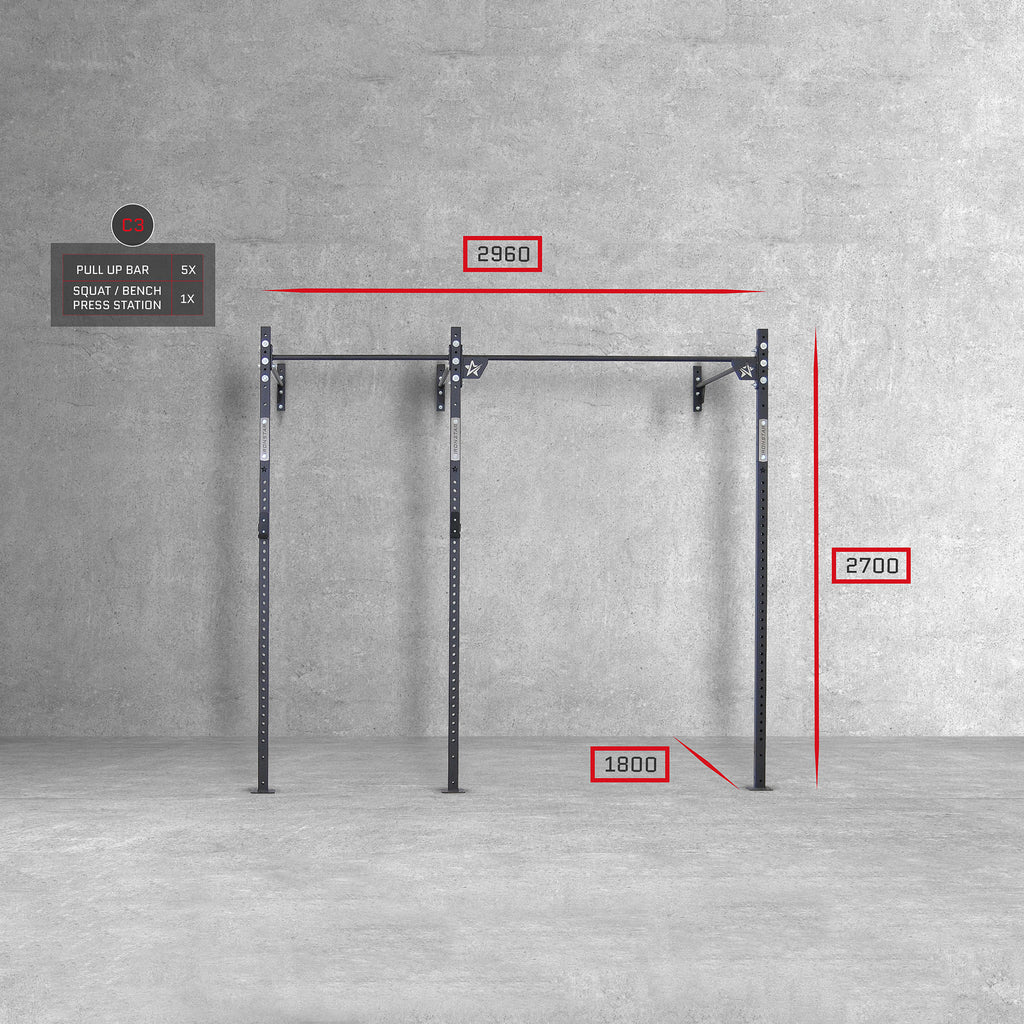

• C3: 2700 x 3020 x 1820 mm (height x width x depth)
  • 1 squat/bench press station, 5 pull up stations, 1 pair of J-Cups

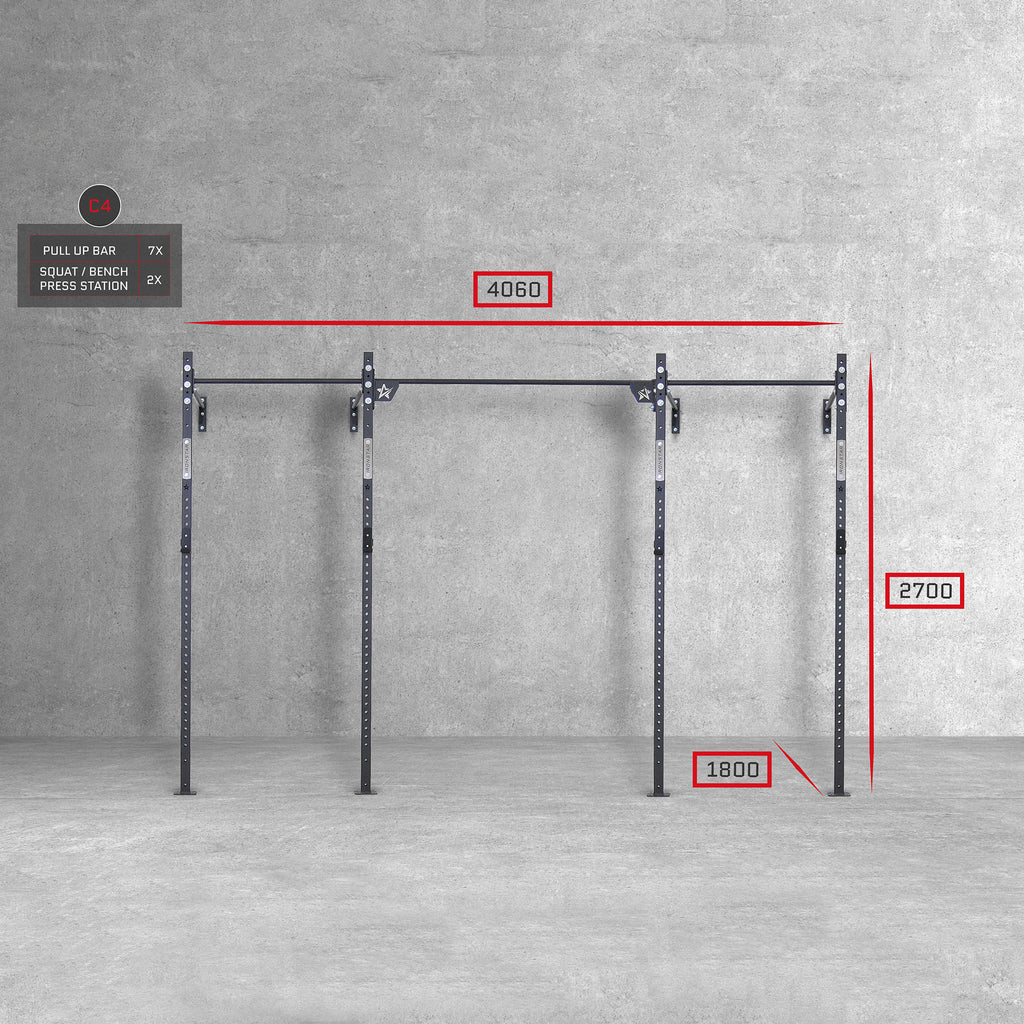

• C4: 2700 x 4140 x 1820 mm (height x width x depth)
  • 2 squat/bench press stations, 7 pull up stations, 2 pairs of J-Cups

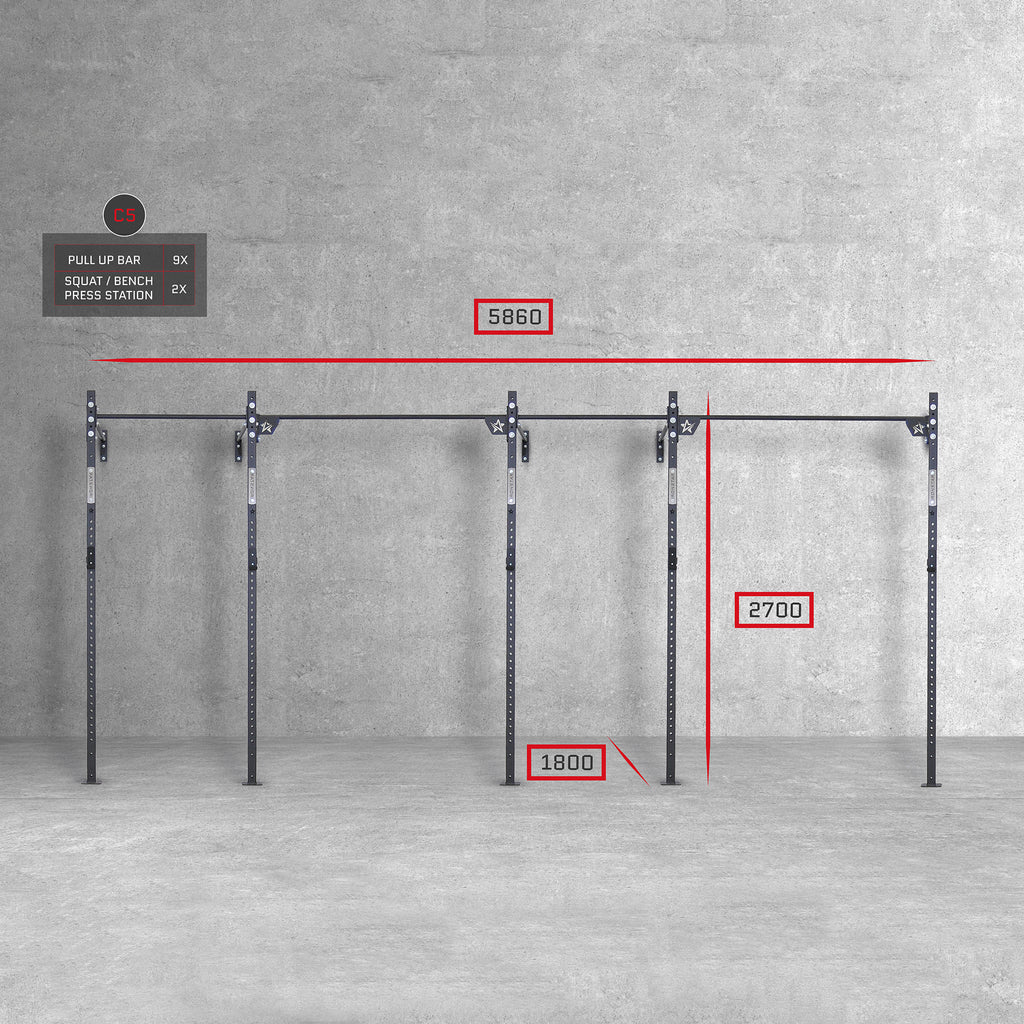

• C5: 2700 x 5960 x 1820 mm (height x width x depth)
  • 2 squat/bench press stations, 9 pull up stations, 2 pairs of J-Cups

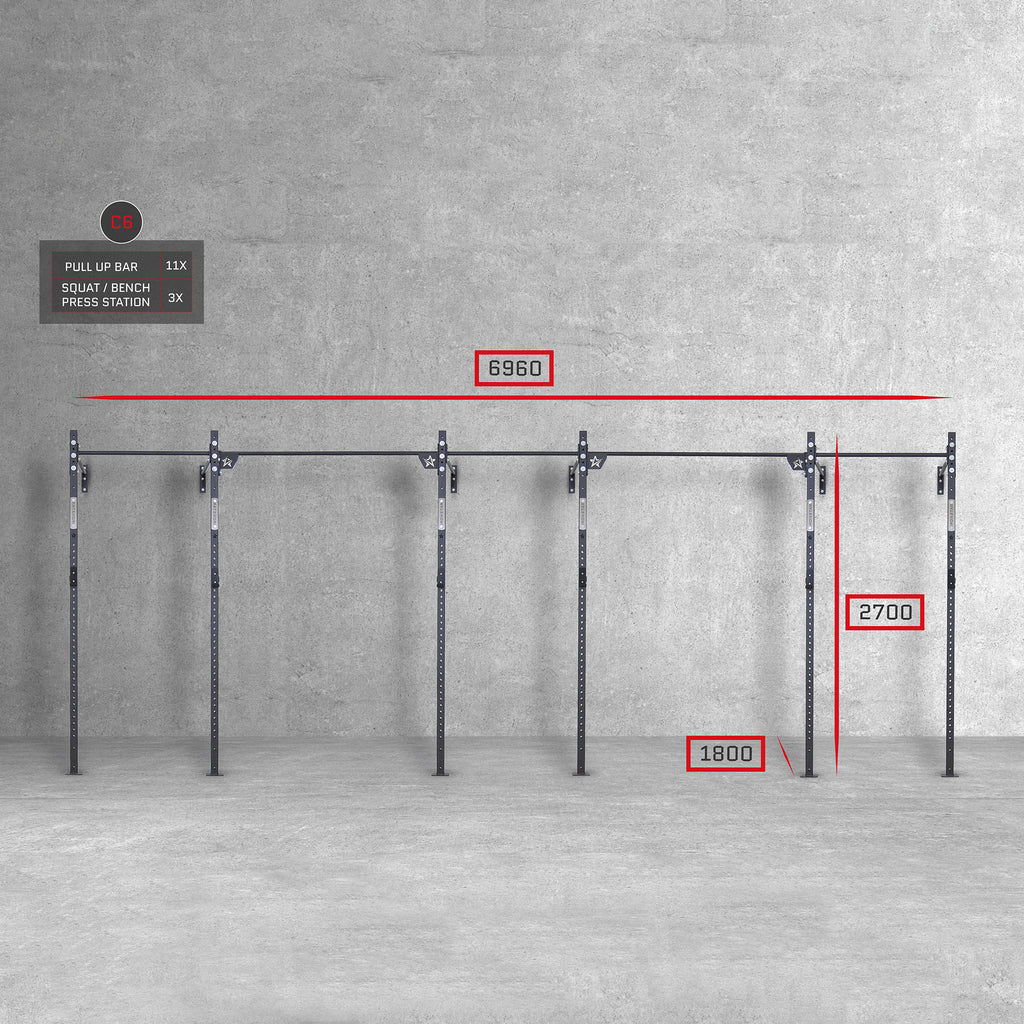

• C6: 2700 x 7080 x 1820 mm (height x width x depth)
  • 3 squat/bench press stations, 11 pull up stations, 3 pairs of J-Cups

SPECIFICATIONS:

• Maximum axial height of the pull up bar is 2625 mm, minimum axial height is 1925 mm
• Axial distance between front holes is 50 mm
• Steel profiles: 80 x 80 x 3 mm (BEAST series)
• Color: black, powder coated
• Compatible with add-ons from the BEAST series

Add-ons and accessories on photos are not included in the price of the basic models of the STAR BEAST BASIC WALL MOUNTS.

IMPORTANT: Please note that the STAR BEAST BASIC WALL MOUNTS structures have side holes only at the bottom and at the top of the columns. Therefore, they are not compatible with the ADJUSTABLE PULL UP BAR and FRONT MOUNTED DIP STATION.

*WARNING: The system must be secured to the wall and floor. Wall and floor mounting screw material NOT INCLUDED. If your room has underfloor heating and therefore it is not possible to attach it to the floor, contact us at info@ironstar-fit.com and our team will help you find a solution for your needs.

Customizations and adjustments available. If you are interested in STAR BEAST BASIC WALL MOUNT structures with a depth of 1120 mm (narrow field) or if you would want to personalize the structure to your needs, reach out to us through info@ironstar-fit.com and our team will find the best possible solution for you.
