STAR LITE CROSS RIG

DESIGNED AND MADE IN SLOVENIA, EUROPE.

Designed and built by our team of experts, our CROSS RIGS will spice up any training space and attract many looks! With the innovative design of the upper part of the RIG, our experts have opened up the endless possibilities offered by this structure. The central part offers the possibility of installing a punching bag, climbing rope, adding a pulley sysytem, etc. STAR LITE CROSS RIG structures are made of steel profiles (60 x 60 x 3 mm) and are powder coated in our standard black colour. The profiles give the whole structure stability and are connected by pull up bars of two dimenions – 1040 mm or 1740 mm. These two dimensions of the pull up bars are used to define the depth of the structures – NARROW or WIDE field. With many add-ons from the LITE series, you can completely customize the rigs and adapt it to your needs.

Modular system allows you to expand the RIG to your liking and add infinite customisation options, like extending the structure and gaining numerous squat/bench press/pull up stations. When your gym expands - so does your RIG.

J-Cups for each squat / bench press station are included in the unit.

DIMENSIONS:

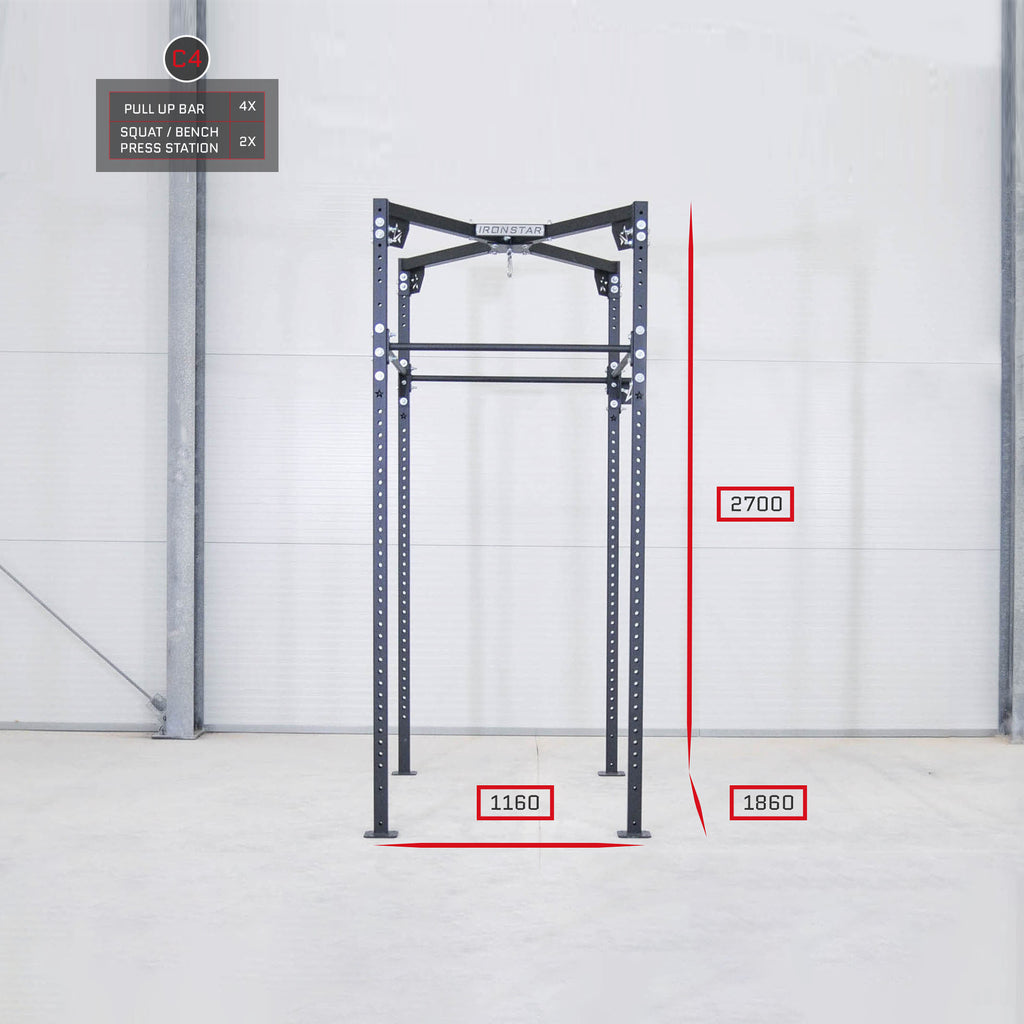

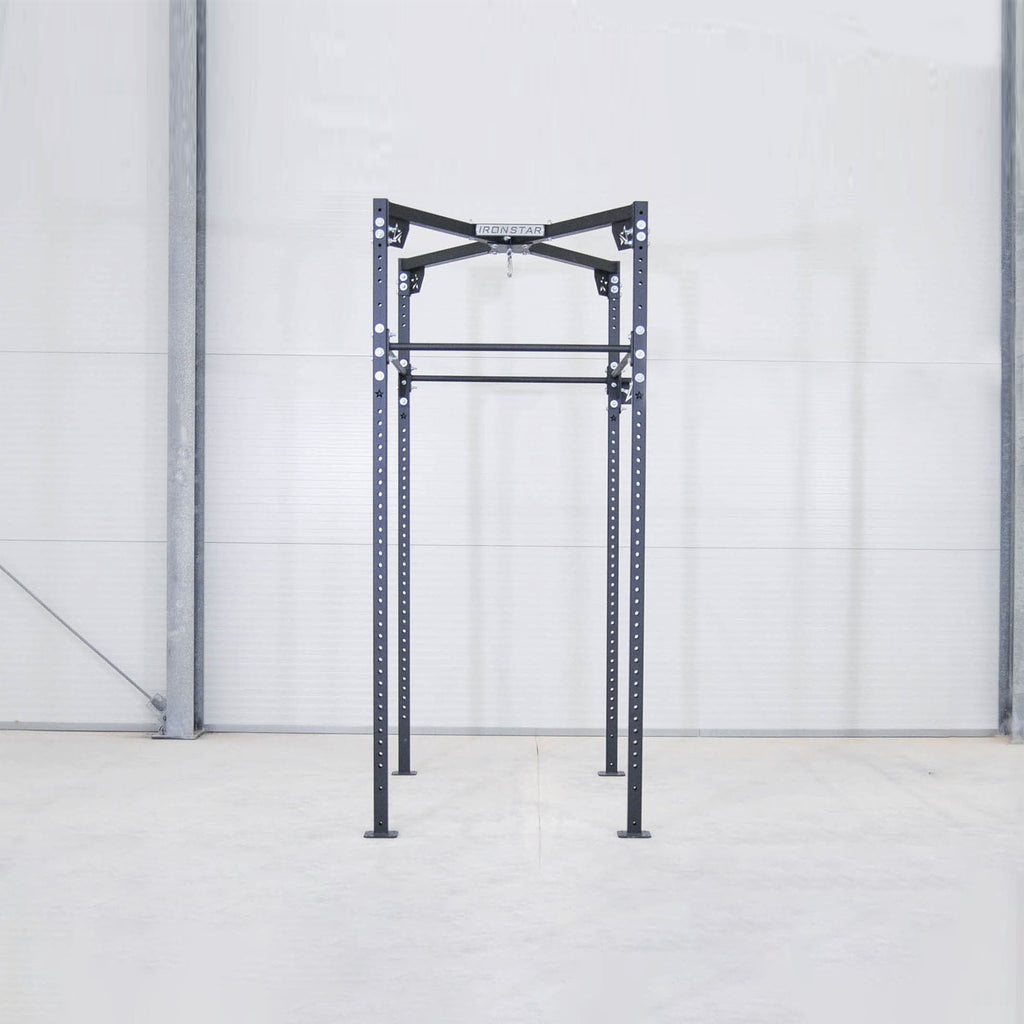

• C4: 2700 x 1160 x 1860 mm (height x width x depth)
  • 2 squat/bench press stations, 4 pull up stations, 2 pairs of J-Cups

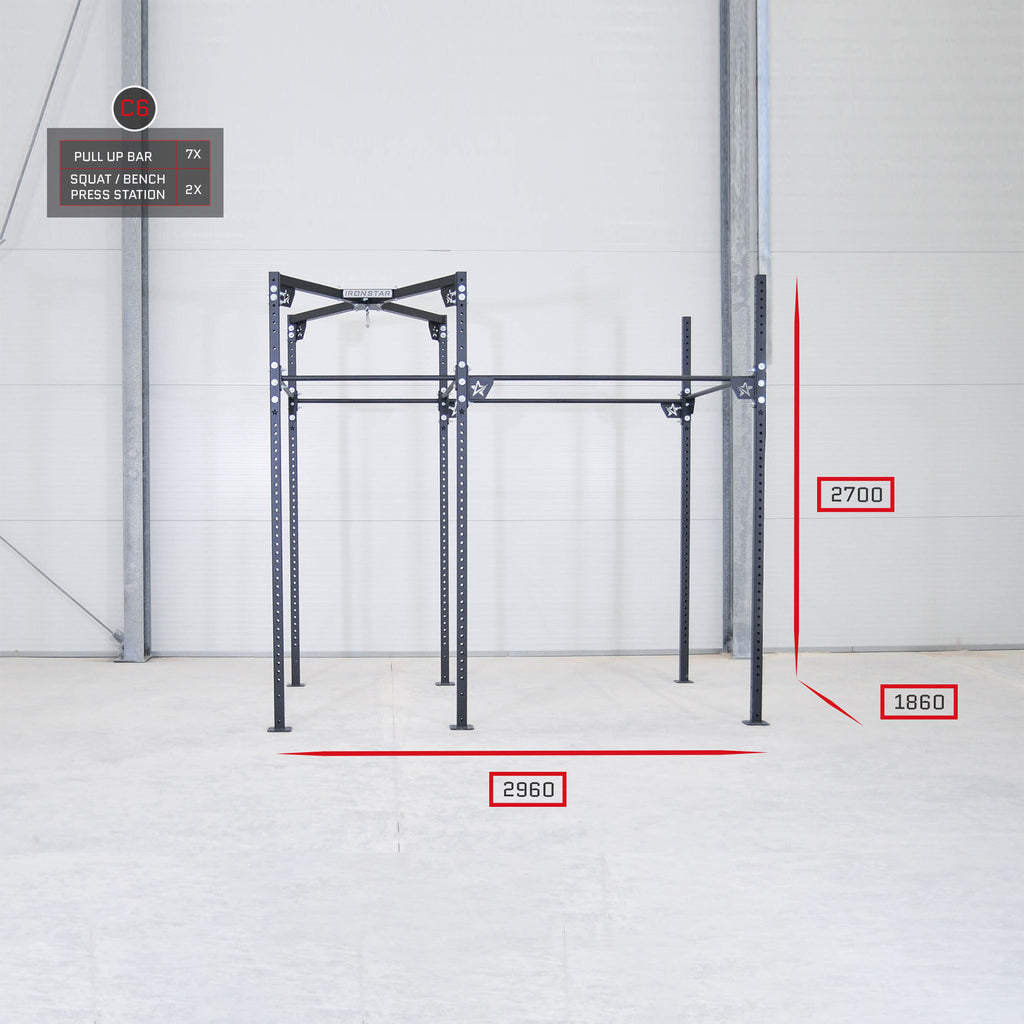

• C6: 2700 x 2960 x 1860 mm (height x width x depth)
  • 2 squat/bench press stations, 7 pull up stations, 2 pairs of J-Cups

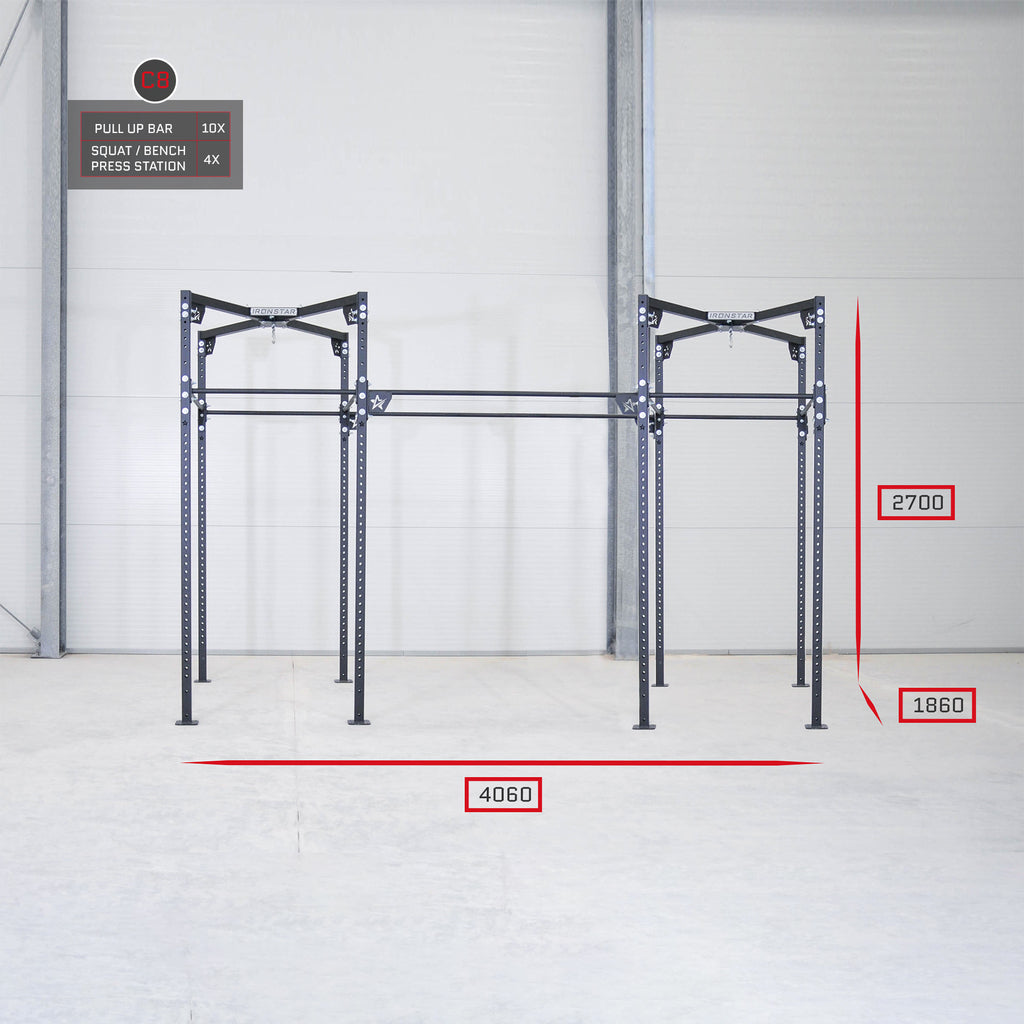

• C8: 2700 x 4060 x 1860 mm (height x width x depth)
  • 4 squat/bench press stations, 10 pull up stations, 4 pairs of J-Cups

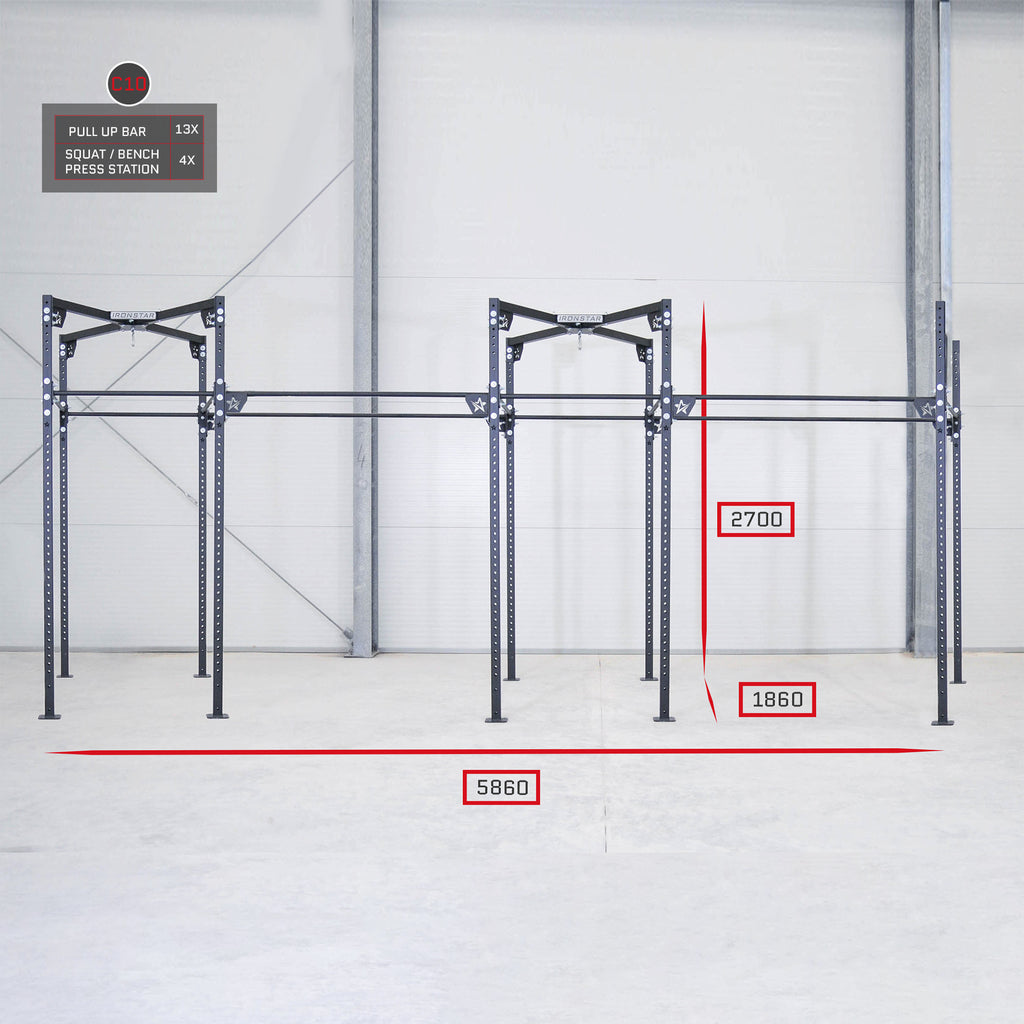

• C10: 2700 x 5860 x 1860 mm (height x width x depth)
  • 4 squat/bench press stations, 13 pull up stations, 4 pairs of J-Cups

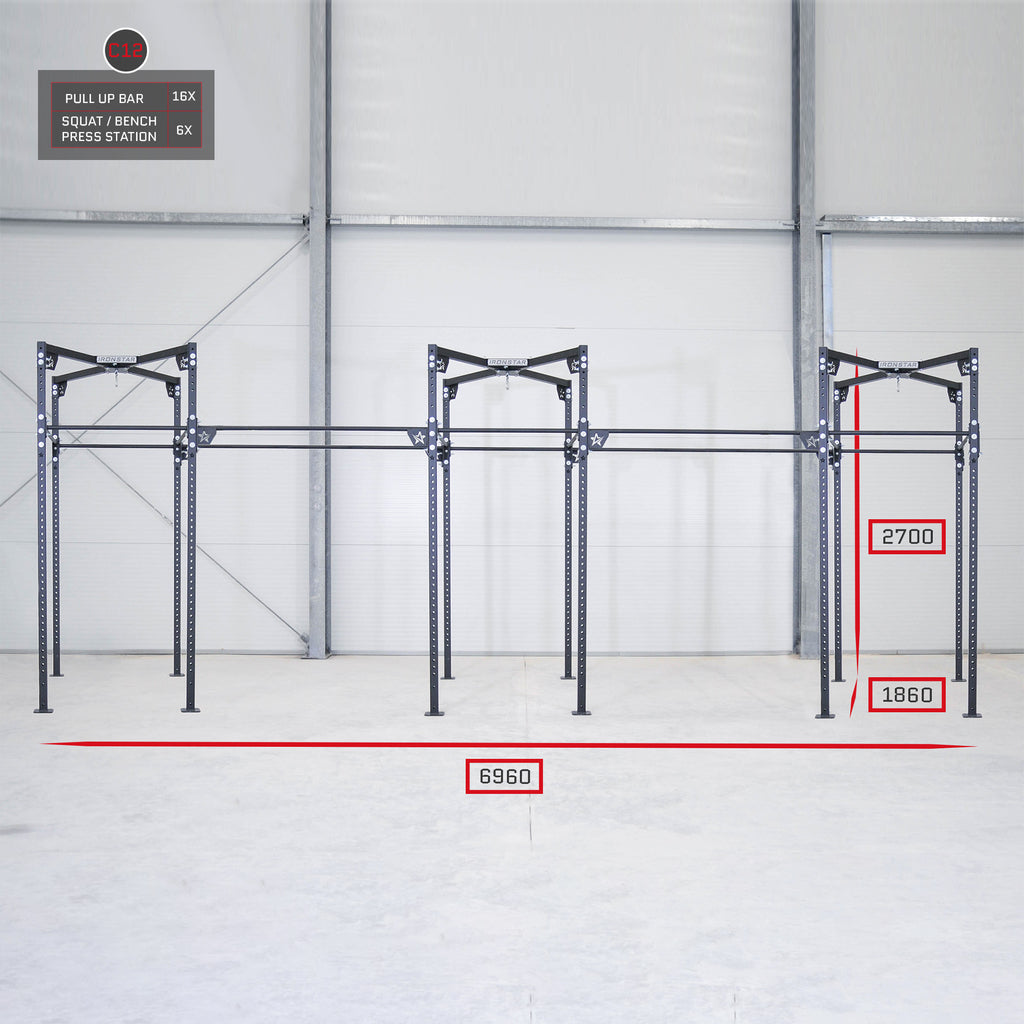

• C12: 2700 x 6960 x 1860 mm (height x width x depth)
  • 6 squat/bench press stations, 16 pull up stations, 6 pairs of J-Cups

SPECIFICATIONS:

• Maximum axial height of the pull up bar is 2625 mm, minimum axial height is 1925 mm
• Axial distance between front holes is 50 mm
• Steel profiles: 60 x 60 x 3 mm (LITE series)
• Color: black, powder coated
• Compatible with add-ons from the LITE series

Add-ons and accessories on photos are not included in the price of the basic models of the STAR LITE CROSS RIGS.

IMPORTANT: Please note that the STAR LITE CROSS RIG structures have side holes only at the bottom and at the top of the columns. Therefore, they are not compatible with the ADJUSTABLE PULL UP BAR and FRONT MOUNTED DIP STATION.

*WARNING: The system must be secured to the floor. Floor mounting screw material NOT INCLUDED. If your room has underfloor heating and therefore it is not possible to attach it to the floor, contact us at info@ironstar-fit.com and our team will help you find a solution for your needs.

Customizations and adjustments available. If you are interested in STAR LITE CROSS RIG structures with a depth of 1160 mm (narrow field) or if you would want to personalize the structure to your needs, reach out to us through info@ironstar-fit.com and our team will find the best possible solution for you.
